    Crimping and cutting tools


    Klauke crimping tool kit and lugs

    SK65BL

    Crimping tool kit and lugsA selection of the most popular crimp lug sizes together with a Klauke manual hexagonal crimping tool, contained in a handy steel carry case.

    Each kit contains:

    1xK05L crimping tool, with revolving hex dies, suitable for 6-70mm lugs.

    25 pieces of:

    L6/6ms 6mm M6

    L6/8ms 6mm M8

    L10/6ms 10mm M6

    L10/8ms 10mm M8

    L16/8ms 16mm M8

    L16/10ms 16mm M10

    L25/8ms 25mm M8

    L25/10ms 25mm M10

    20 pieces of:

    L35/8ms 35mm M8

    L35/10ms 35mm M10

    L50/10ms 50mm M10

    L50/12ms 50mm M12

    Klauke cable end sleeves crimping

    K 4

    • K 4Indent crimping of cable end sleeves
    • Lateral insertion
    • Range: 0.5-2.5mm2
    • Length 150 mm
    • Weight: 0.16 kg

    K 46

    • Similar to K 4
    • Range: 1.5-6mm2



    K 37

    • K 37 Trapezoid crimping of cable end sleeves
    • Lateral insertion
    • With ratchet.
    • Range: 0.14-6mm2
    • Length: 200 mm
    • Weight: 0.36 kg

    K 39

    • Similar to K 37
    • Range 10-25mm2

    K 303

    • K 303Square crimping of cable end sleeves
    • Lateral insertion with ratchet
    • Range: Cable end-sleeves: 0.14-10mm2
    • Twin-cable end-sleeves: 2 x 0.5-2 x 4 mm
    • Length: 190 mm
    • Weight: 0.3 kg
    Klauke Indent crimping

    K 95

    • K 95For standard tubular cable lugs and connectors
    • With revolving dies
    • Indent crimping
    • Range: 16-95 mm2
    • Weight: 3.6 kg



    K 5K 5

    • For standard tubular cable lugs and connectors
    • With revolving dies and indent crimping



    K 8K 6, K 07, K 7, K 8

    • For standard tubular cable lugs and connectors
    • With revolving dies
    • Indent crimping



    Klauke Hexagonal crimping

    K 05Klauke K 05 Hexagonal crimping range

    K 05D, K 05SP, K 05DSP

    • Tubular standard cable lugs and connectors
    • With revolving dies
    • Hexagonal crimping

    Part No's K 05 hexagonal crimping range.

    PART NO.

    RANGE

    LENGTH

    WEIGHT

    K 05

    6-50mm2>

    390

    1.1 kg

    K 05D
    K 05SP
    K 05DSP

    For compression cable lugs and compression joints DIN 46235/ DIN 46267
    Similar to K 05 but with ratchet
    Similar to K 05D but with ratchet

    K 08 Hexagonal crimping range

    K 08D, K 08SP, K 08DSP

    • Tubular standard cable lugs and connectors
    • With revolving dies
    • Hexagonal crimping

    Part No's K 08 hexagonal crimping range.

    PART NO.

    RANGE

    LENGTH

    WEIGHT

    K 08

    16-95mm2

    530 mm

    1.8 kg

    K 08D
    K 08SP
    K 08DSP

    For compression cable lugs and compression joints DIN 46235/ DIN 46267
    Similar to K 08 but with ratchet
    Similar to K 08D but with ratchet

    K 06 Hexagonal crimping range

    K 06D, K 06SP, K 06DSP

    • Tubular standard cable lugs and connectors
    • With revolving dies
    • Hexagonal crimping

    Part No's K 06 hexagonal crimping range.

    PART NO.

    RANGE

    LENGTH

    WEIGHT

    K 06

    10-120mm

    650 mm

    2.9 kg

    K 06D
    K 06SP
    K 06DSP

    For compression cable lugs and compression joints DIN 46235/ DIN 46267
    Similar to K 06 but with ratchet
    Similar to K 06D but with ratchet

    K 09K 09 Hexagonal crimping range

    K 09D, K 09SP, K 09DSP

    • Tubular cable lugs and connectors standard type
    • With revolving dies
    • Hexagonal crimping

    Part No's K 09 hexagonal crimping range.

    PART NO.

    RANGE

    LENGTH

    WEIGHT

    K 09

    25-150mm

    650 mm

    2.9 kg

    K 09D
    K 09SP
    K 09DSP

    For compression cable lugs and compression joints DIN 46235/ DIN 46267
    Similar to K 09 but with ratchet
    Similar to K 09D but with ratchet



    Klauke Insulated crimp tools

    K 80

    • Double crimping, oval shape with ratchet
    • Range: 0.1-1mm2
    • 0.1-0.4mm2 (yellow)
    • 0.5-1mm2 (red)
    • Length: approx. 195 mm
    • Weight: approx. 0.38 kg

    K 81

    • K 81Double crimping, oval shape with ratchet
    • Range: 0.5 - 2.5mm2
    • 0.5 - 1mm2 (red)
    • 1.5 - 2.5mm2 (blue)
    • Length: approx. 195mm
    • Weight: approx. 0.38kg

    K 82

    • K 82Double crimping, oval shape with ratchet
    • Range: 0.5 - 6mm2
    • 0.5 - 1mm2 (red)
    • 1.5 - 2.5mm2 (blue)
    • 4 - 6mm2 (yellow)
    • Length: approx. 225mm
    • Weight: approx. 0.55kg

    Klauke non insulated crimp tools

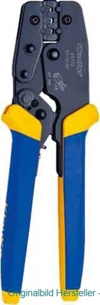

    K 572, K 582, K 592

    • K 572Double crimping non insulated crimp terminals
    • Crimping of conductor and insulation in one step
    • Roll-crimping
    • With ratchet
    • Table range below

    K 507 3 in 1 crimping system

    K507

    • Quick interchangeable crimping dies
    • The handle provides storage for two additional die sets
    • Tool includes 3 die sets

    Range:

    • 0.5 - 6mm2 insulated crimp terminals
    • 0.5 - 10mm2 Cable end sleeves
    • 0.5-10mm2 non insulated cable lugs
    • Length: approx. 220mm
    • Weight: approx. 619.5g inc. 3 die sets

    Accessories available:

    • Additional die sets that fit the EK1550 mini power tool will also fit the K507
    • K507,EK1550, EK1550G Available die sets

    Available die sets

    The table below details information about the available die sets for the 3 in 1 crimping system.

    PART NO.



    mm2





    R501

    R502

    0.75-2.5

    4-10



    Tubular cable lugs Cu

    Connectors Cu

    M50154

    M50610

    1.5-4

    6-10



    Cu-tubular cable lugs and connectors

    for solid conductors

    Q501

    0.5-10



    Solderless terminals DIN 46234

    Pin terminals DIN 46230

    AE501

    AE502

    AE503

    0.14-6

    10-25

    35-50



    Cable end-sleeves

    IS501**

    IS503**

    IS502*

    IS504*

    IS505*

    0.5-6

    0.1-1

    10-16

    0.5-2.5

    4-6



    Insulated cable connection

    **Double crimping

    *Single crimping

    CR501

    CR502

    CR503

    CR504

    CR505

    0.5-6

    0.1-2.5

    0.5-1

    0.5-2.5

    0.5-1.5



    Non insulated crimp terminals

    BNC501



    BNC plugs for cable RG 58, 59, 62, 71

    SB501

    0.1-1

    1.5-2.5



    Turned pin connectors



    Klauke pro TEKP1

    Electric and pneumatic crimping tools

    • Klauke pro TEKP1Stationary basic tool incorporates a tool holder which enables quick and easy change of crimping heads
    • Compatible with all crimping heads of the Klauke Pro-Series
    • The tool operates with a foot switch which needs to be actuated during the entire crimping cycle to comply with CE safety regulations
    • Ergonomic design of the cover for comfortable and low-stress use
    • Designed for long term application
    • Weight: 13.0 kg
    • Mains voltage: 220 - 240 V



    Technical data:

    Weight: 13.0 kg

    Mains voltage: 220 - 240 V

    Klauke inter-changeable crimping heads

    The table below shows the interchangeable crimping heads available for the Klauke pro TEKP1.





    PART NO.



    PART NO.



    KP312



    KP80



    KP304



    KP81



    KP303



    KP83



    KP315



    KP232



    KP352



    KP242



    KP66





    Klauke pro TC1S

    Digital meter for force and pressure measurement

    • For force and pressure sensors
    • Optional measuring adapter for measuring the crimping force of hydraulic crimping tools













    Klauke mini EK354

    Battery powered crimping tool

    • Large cross section range up to 150 mm2
    • Slim crimping head - ideal when space is critical
    • Flip top style closed crimping head, rotates 360
    • Two stage hydraulics
    • Quick motor stop
    • Motor stop and automatic retraction when crimping is complete
    • Electronic control and monitoring of crimping operation
    • Manual retract in case of need
    • Light diode for battery charge and maintenance control
    • Also available as mains operated tool, 230 V

    Supplied with:

    Basic tool with battery and charger

    Steel carrying case:
    Dimensions: 432 x 382 x 97 mm
    Total weight: 10.0 kg

    Accessories:

    Battery 9.6 V / 2.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Holster for belt mounting

    Digital meter for force and pressure measurement

    Measuring adapter Series 4

    Force sensor 70 kN

    Technical data:

    Crimping force:55 kN

    Crimping cycle: 6 s

    Weight: 5.0 kg

    Battery voltage: 12 V

    Battery capacity: 2.6 Ah, approx. 195 crimps

    Charging time: 60 min. (15 min. with quick charger)

    Ambient temperature: -20 C up to +40 C

    Klauke mini EK1550 & EK1550G

    Battery powered crimping tool

    • Interchangeable dies
    • Head rotates 330
    • Quick motor stop
    • Automatic retraction when crimping is complete
    • Manual retraction in case of need
    • Light diode for battery charge and maintenance control
    • Ergonomic design for one hand operation



    Technical data:

    Crimping force: 13 kN

    Stroke: 9 mm

    Crimping cycle: Approx. 2 seconds

    Weight: EK 1550 1.3 kg, EK 1550G 1.5 kg

    Battery voltage: 9.6 V

    Battery capacity: 1.3 Ah, approx. 150 crimps

    Charging time: 40 min.(15 minutes quick charge)

    Ambient temperature: -20C up to +40C

    Head rotation: EK 1550 - 330, EK 1550G - 345

    Available die sets

    The table below details information about the available die sets for the Klauke mini EK1550 and EK1550G.

    PART NO.



    mm2





    R501

    R502

    0.75-2.5

    4-10



    Tubular cable lugs Cu

    Connectors Cu

    M50154

    M50610

    1.5-4

    6-10



    Cu-tubular cable lugs and connectors

    for solid conductors

    Q501

    0.5-10



    Solderless terminals DIN 46234

    Pin terminals DIN 46230

    AE501

    AE502

    AE503

    0.14-6

    10-25

    35-50



    Cable end-sleeves

    IS501**

    IS503**

    IS502*

    IS504*

    IS505*

    0.5-6

    0.1-1

    10-16

    0.5-2.5

    4-6



    Insulated cable connection

    **Double crimping

    *Single crimping

    CR501

    CR502

    CR503

    CR504

    CR505

    0.5-6

    0.1-2.5

    0.5-1

    0.5-2.5

    0.5-1.5



    Non insulated crimp terminals

    BNC501



    BNC plugs for cable RG 58, 59, 62, 71

    SB501

    0.1-1

    1.5-2.5



    Turned pin connectors

    Klauke mini E1550ST

    Battery powered crimping tool

    • Steel head for extreme long service life
    • Interchangeable dies
    • Head rotates 330
    • Quick motor stop
    • Automatic retraction when crimping is complete
    • Manual retraction in case of need
    • Ergonomic design for one hand operation
    • Light diode for battery charge and maintenance control

    Supplied with:

    Basic tool with battery and charger

    Steel carrying case:
    Dimensions: 432 x 382 x 97 mm
    Total weight: 10.0 kg

    Accessories:

    Battery 9.6 V / 2.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Holster for belt mounting

    Digital meter for force and pressure measurement

    Measuring adapter Series 50

    Force sensor 70 kN

    Technical data:

    Crimping force: 13 kN

    Stroke: 9 mm

    Crimping cycle: 2 s

    Weight: 1.5 kg

    Battery voltage: 9.6 V

    Battery capacity: 2.0 Ah, approx. 220 crimps

    Charging time: 40 min. (15 min. with quick charger)

    Ambient temperature: -20 C up to +40 C

    Klauke EK12025

    Battery powered crimping tool

    • Very large crimping range to 400 mm2
    • For interchangeable dies
    • C-crimpig head, rotates 360
    • Quick motor stop
    • New two stage hydraulics
    • Motor stop and automatic retraction when crimping is complete
    • Manual retraction in case of need
    • Electronic control and monitoring of crimping operation
    • Light diode for battery charge and maintenance control
    • Also available as mains operated tool 230 V

    Supplied with:

    Basic tool with battery and charger

    Steel carrying case:
    Ddimensions: 432 x 382 x 97 mm
    Total weight: 15.5 kg

    Accessories:

    Battery 12 V / 3.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Mains adapter 230 V

    Digital meter for force and pressure measurement

    Measuring adapter Series 13

    Force sensor 130 kN

    Technical data:

    Crimping force: 130 kN

    Stroke: 25 mm

    Crimping cycle: 7.5 s up to 13.5 s (depending on size)

    Weight: 7.2 kg

    Battery voltage: 12 V

    Battery capacity: 2.6 Ah, approx. 65 crimps (Cu 150 mm DIN 46235)

    Charging time: 60 min. (15 min. with quick charger)

    Ambient temperature: -20

    Klauke EK60 UNV

    Battery powered crimping tool

    Crimping, cutting and punching with just one single tool

    • 12V hydraulic universal tool
    • Tool with flip-top universal head for adapters and dies for various application
    • Head rotates 360
    • Two stage hydraulics
    • Quick motor stop
    • Motor stop and automatic retraction when crimping is complete
    • Electronic control of operation cycles
    • Manual retract in case of need
    • Light diode for battery charge and maintenance control
    • Also available as mains operated tool, 230 V

    Supplied with:

    Basic tool with universal head

    Plastic carrying case:
    Dimensions: 535 x 425 x 177 mm
    Total weight: 9.5 kg

    Accessories:

    Battery 12 V / 3.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Mains adapter 230 V

    Technical data:

    Cutting time: 8 s bis 20 s (depending on cable diameter)

    Crimping force: 60 kN

    Stroke: 42 mm

    Crimping cycle: 5 s up to 8 s (depending on cable size)

    Weight: 4.5 kg

    Battery voltage: 12 V

    Battery capacity: 2.6 Ah, approx. 185 crimps (Cu 150 mm2 DIN 46235)

    Charging time: 60 min. (15 min. with quick charger)

    Ambient temperature: -20 C up to +40 C

    Klauke EK120U PLUS

    Battery powered crimping tool

    • For interchangeable dies
    • H-crimping head, rotates 360
    • High-performance 3.0 Ah NiMH battery
    • Quick motor stop
    • New two stage hydraulics
    • Motor stop and automatic retraction when crimping is complete
    • Manual retraction in case of need
    • Electronic control and monitoring of crimping operation
    • Light diode for battery charge and maintenance control
    • Also available as mains operated tool 230 V

    Supplied with:

    Basic tool with battery and charger

    Steel carrying case:
    Dimensions: 582 x 422 x 100 mm
    Total weight: 14.3 kg

    Accessories:

    Battery 12 V / 3.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Mains adapter 230 V

    Digital meter for force and pressure measurement

    Measuring adapter Series 13

    Force sensor 130 kN

    Technical data:

    Crimping force: 130 kN

    Stroke: 20 mm

    Crimping cycle: 6 s up to 13 s (depending on size)

    Weight: 6.0 kg

    Battery voltage: 12 V

    Battery capacity: 2.6 Ah, approx. 65 crimps (Cu 150 mm2 DIN 46235)

    Charging time: 60 min. (15 min. with quick charger)

    Ambient temperature: -20 C up to +40 C



    K 100 - K 1012 range

    Klauke Cutting and cable protection

    K 100

    • For fine and multi-stranded cable
    • Cutting range: 14 mm max, e.g. 1x50 mm H07VK
    • Length: 280 mm
    • Weight: 0.55 kg

    K 130

    • High performance flat blades
    • Cutting range - 50 mm max, e. g. 4 x 120 mm NYY
    • Length - 710 mm
    • Weight - 13kg

    K 150

    • Square crimping of cable end sleeves
    • Lateral insertion with ratchet
    • Range: Cable end-sleeves: 0.14-10mm2
    • Twin-cable end-sleeves: 2 x 0.5-2 x 4 mm
    • Length: 190 mm
    • Weight: 0.3 kg

    K 1011

    • With interchangeable head
    • Cutting range - 26 mm max, e. g. 4 x 35 mm NYY
    • Length - 570 mm
    • Weight - 1.8kg

    K 1012

    • Cutting range: 38 mm max, e. g. 4 x 70 mm NYY
    • Length: 930 mm
    • Weight: 4.2 kg

    K 1012E

    • Cable cutting head for K 1012

    K 1051

    • With interchangeable head
    • K 1051 has telescopic handles
    • Cutting range - 38 mm max, e. g. 4 x 70 mm NYY
    • Length - variable up to 930 mm
    • Weight - 4.2kg

    K 432 - K 102 range

    Cutting and cable protection

    K 432

    • Automatic wire stripper with wire cutter
    • Adjustable stop
    • Stripping length up to 17mm
    • Easy change of blade system fitted with
      K 432E blades
    • Interchangeable blades for cable stripper K 432

      Part No.

      Stripping range

      K 432E

      0.08-10mm2

      K 432E2

      0.1-4mm2

      K 432E3

      4-16mm2

    K 400

    • Cable stripper with exchangeable hooks
    • Max cutting depth of knife: 4.5mm
    • Max stripping dia (small hook): 21mm
    • Max stripping dia (large hook): 40mm
    • Length: 168mm
    • Weight: approx 0.120kg

    K 102

    • For fine-and multi-standed cable
      DIN 57295, class 5 + 2
    • Cutting range: 20 mm max e.g. 1 x 95 mm H07VK
    • Length: 200 mm
    • Weight: 0.35 kg

    Klauke ES50 PLUS

    12 V Battery powered cutting tool

    • Cuts copper and aluminium cables
      (not for amoured cables)
    • Cutting head rotates 360
    • Two stage hydraulics
    • Quick motor stop
    • Electronic control and monitoring cutting operation
    • Manual retraction in case of need
    • Light diode for battery charge and maintenance control
    • Also available as mains operated tool, 230 V

    Supplied with:

    Basic tool with battery and charger

    Steel carrying case:

    Dimensions: 582 x 422 x 100 mm

    Total weight: 14.2 kg

    Accessories:

    Spare blade

    Battery 12 V / 3.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Mains adapter 230 V

    Technical data:

    Cutting force: 50 kN

    Cutting range: 50 mm, e.g. 4 x 150 mm2 NYY

    Cutting time: 9 s up to 20 s (depending on cable size)

    Weight: 6.3 kg

    Battery voltage: 12 V

    Battery capacity: 2.6 Ah, approx. 80 cuts (4 x 20 mm2 NYY)

    Charging time: 60 min. (15 min. with quick charger)

    Ambient temperature: -20 C up to +40 C

    Klauke ES85

    12 V Battery powered cutting tool

    • High cutting speeds
    • Cuts aluminium and copper cables
      (not for armoured cables)
    • Open cutting head, rotates 360
    • Two stage hydraulics
    • Quick motor stop
    • Electronic control and motoring cutting operations
    • Automatic retraction when cut is complete
    • Battery charge indicator
    • Light diode for battery charge and maintenance control
    • Also available as mains operated tool, 230 V

    Supplied with:

    Basic tool with battery and charger

    Steel carrying case:

    Dimensions: 582 x 422 x 100 mm

    Total weight: 15.4 kg

    Accessories:

    Battery 12 V / 3.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Mains adapter 230 V

    Technical data:

    Cutting force: 50 kN

    Cutting range: 50 mm, e.g. 4 x 150 mm2 NYY

    Cutting time: 9 s up to 20 s (depending on cable size)

    Weight: 6.3 kg

    Battery voltage: 12 V

    Battery capacity: 2.6 Ah, approx. 80 cuts (4 x 20 mm2 NYY)

    Charging time: 60 min. (15 min. with quick charger)

    Ambient temperature: -20 C up to +40 C

    Klauke ESG45 PLUS

    12 V Battery powered cutting tool

    • Cuts steel armoured copper or aluminium cables
      and Al/St cables (ACSR)
    • Cutting head rotates 360, jaws flip open
    • Two stage hydraulics
    • Quick motor stop
    • Automatic retraction when cut is complete
    • Manual retraction in case of need
    • Electronic control and monitoring of cutting operation
    • Light diode for battery charge and maintenance control
    • Also available as mains operated tool, 230 V

    Supplied with:

    Basic tool with battery and charger

    Steel carrying case:

    Dimensions: 432 x 382 x 97 mm

    Total weight: 10.0 kg

    Accessories:

    Outer, stationary blade

    Inner, moving blade

    Battery 12 V / 3.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Mains adapter 230 V

    Technical data:

    Cutting force: 60 kN

    Cutting range: 45 mm, e.g. Al/St cable 570/40

    Cutting time: 8 s up to 18 s (depending on cable size)

    Weight: 5.8 kg

    Battery voltage: 12 V

    Battery capacity: 2.6 Ah, approx. 90 cuts (Al/St cable 570/40)

    Charging time: 60 min. (15 min. with quick charger)

    Ambient temperature: -20 C up to +40 C



    Klauke ES50 PLUSKlauke ESG50 PLUS

    12 V Battery powered cutting tool

    • Cuts copper and aluminium cables
      (not for armoured cables)
    • Cutting head rotates 360, jaws flip open
    • Two stage hydraulics
    • Quick motor stop
    • Automatic retraction when cut is complete
    • Manual retraction in case of need
    • Electronic control and monitoring of cutting operation
    • Light diode for battery charge and maintenance control
    • Also available as mains operated tool, 230 V

    Supplied with: Basic tool with battery and charger, Steel carrying case: Dimensions: 432 x 382 x 97 mm, Total weight: 10.0 kg

    Accessories:

    Outer, fixed blade

    Inner, moving blade

    Battery 12 V / 3.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Mains adapter 230 V

    Technical data:

    Cutting force: 50 kN

    Cutting range: 48 mm, e.g. 4 x 120 mm2 NYY

    Cutting time: 10 s up to 24 s (depending on cable size)

    Weight: 4.7 kg

    Battery voltage: 12 V

    Battery capacity: 2.6 Ah, approx. 85 cuts (4 x 120 mm2 NYY)

    Charging time: 60 min. (15 min. with quick charger)

    Ambient temperature: -20 C up to +40 C

    Klauke ES50 PlusKlauke ESG85 PLUS

    12 V Battery powered cutting tool

    • Cuts copper and aluminium cables
      (not for armoured cables)
    • Cutting head rotates 360, jaws flip open
    • Two stage hydraulics
    • Quick motor stop
    • Manual retraction in case of need
    • Electronic control and monitoring of cutting operation
    • Light diode for battery charge and maintenance control
    • Also available as mains operated tool, 230 V

    Supplied with:

    Basic tool with battery and charger

    Steel carrying case:

    Dimensions: 582 x 422 x 100 mm

    Total weight: 15.3 kg

    Accessories:

    Outer, fixed blade

    Inner, moving blade

    Battery 12 V / 3.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Mains adapter 230 V

    Technical data:

    Cutting force: 60 kN

    Cutting range: 85 mm, e.g. 4 x 240 mm2 NYY

    Cutting time: 21 s up to 40 s (depending on cable size)

    Weight: 7.3 kg

    Battery voltage: 12 V

    Battery capacity: 2.6 Ah, approx. 40 cuts (4 x 240 mm2 NYY)

    Charging time: 60 min. (15 min. with quick charger)

    Ambient temperature: -20 C up to +40 C



    Klauke ESSG853

    Safety cutting unit

    Klauke ESSG853Battery operated electric hydraulic safety cutting unit to determine whether a cable is live by cutting it.

    • The unit is equipped with a special brake which stops the forward motion of the piston/blade when the trigger is released.
    • The unit is equipped with a double piston pump which is characterised by a rapid approach of the blades towards the connector and a slow cutting motion.
    • The ESSG is equipped with a microprocessor which indicated service intervals, internal checks and low battery charges.
    • The unit has a perfect handling through its compact design and light weight.
    • Within the scope of delivery there is a certified earth equipment consisting of an earth cable, a charging unit with spare battery and a robust plastic carrying case.

    Specifications:

    Pumpe:

    Total weight: ESSG 853 9.92 kg

    Max. cable diameter: 85 mm

    Total weight: approx. 3.67 kg (inclusive battery)

    Cuts per battery: approx.17 cuts/battery (4 x 240 mm2 NYY)

    Sound level: 70 dB (A) in 1m distance

    Vibrations: <2.5 m/s2

    Insulating hose:

    Length between the fittings: 10.3 m

    Accessories:

    Heat shield cover 1.80 m x 1.80 m

    Heat shield cover 1.20 m x 0.90 m

    Heat shield cover 0.45 m x 0.60 m

    Technical data:

    Cutting range: max. 85 mm (depending on cable type)

    Operating pressure: 625 bar

    Hydraulik oil: Special oil Rivolta S.B.H.11
    High grade bio-degradable, not hazardous to water

    Battery voltage: 12V

    Battery capacity: 3.0 Ah, approx. 17 cuts (4 x 240 mm2 NYY)

    Charging time: 40 - 60 min

    Temperature: -20C to 40C


    Klauke EBS12Klauke EBS12

    Mini battery powered bolt cutters

    For wire diameter up to 12 mm max. Designed for cutting bolts, security seals and steel wire, to 12 mm, supplied with basic tool, plastic case, battery and charger.

    • Safely removes security seals, wagon seals, drum seals and container seals
    • Quick and easy to use
    • Highly portable and light weight
    • Removes the need to use cumbersome bolt cutters
    • More precise operation
    • Battery operated (rechargeable)
    • EBS12 Head rotates 345o
    • Battery display indicator to advise when charging is required
    • Quick stop
    • Automatic retraction once cut is completed
    • Manual retract on demand
    • Ergonomic design for one-hand operation
    • Enhanced health and safety features

    Supplied with:

    Basic tool with battery and charger

    Plastic carrying case:

    Dimensions: 450 x 370 x 105 mm

    Accessories:

    Spare cutting blades HB9857

    Spare battery RAM2

    Spare 240v charger LGM4

    Technical data:

    Cutting force: 35kN

    Stroke: 12mm

    Cutting time: Ca. 5s

    Weight: 1.9kg

    Battery voltage: 9.6V

    Battery capacity: 2.0 Ah approx

    Charging time: 40 min

    Ambient temperature: -20oC to 40oC



    Klauke EBS8Klauke EBS8

    Mini battery powered bolt cutters

    • For cutting cable trays, bolts and steel wire, medium-hard
      (e.g. mild steel) to 8 mm
    • Slim cutting head - designed for tight spaces
    • Quick and easy to use
    • Highly portable and light weight
    • Removes the need to use cumbersome bolt cutters
    • More precise operation
    • Battery operated (rechargeable)
    • EBS 8 Head rotates 330o
    • Battery display indicator to advise when charging is required
    • Quick stop
    • Automatic retraction once cut is completed
    • Manual retract on demand
    • Ergonomic design for one-hand operation
    • Enhanced health and safety features

    Supplied with:

    Basic tool with battery and charger

    Plastic carrying case:

    Dimensions: 450 x 370 x 105 mm

    Accessories:

    Battery 9.6 V / 2.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Technical data:

    Cutting force: 15kN

    Stroke: 8mm

    Cutting time: CA. 1s

    Weight: 1.3kg

    Battery voltage: 9.6V

    Battery capacity: 2.0 Ah approx

    Charging time: 40 min

    Ambient temperature: -20oC to 40oC

    Klauke ES20Klauke ES20

    Mini battery powered cutting tool

    • Battery powered cutting tool, max. 20 mm
    • Sturdy design
    • For cutting all standard Al/St ropes up to 15 mm
    • Ideal for cutting laminated copper busbars
    • Ergonomic design for one hand operation
    • For cutting Al/St conductors (ACSR) to DIN EN 50182, solid Al/Cu acc. to VDE
      0295, Class 1 and copper busbars
    • Cutting head rotates 330
    • Quick motor stop
    • Automatic retraction when cut is complete
    • Manual retraction in case of need
    • Light diode for battery charge and maintenance control

    )

    Supplied with:

    Basic tool with battery and charger

    Plastic carrying case:

    Dimensions: 450 x 370 x 105 mm

    Accessories:

    Battery 9.6 V / 2.0 Ah NiMH

    Charger for NiCd and NiMH batteries, 230 V mains operated

    Quick charger for NiCd and NiMH batteries,
    230 V

    Technical data:

    Cutting range: Max. cable/conductor dimensions, stranded = 20mm (depending on cable/conductor type)

    Battery voltage: 9.6 V

    Battery capacity: 2.0 Ah, approx. 180 cuts (ACSR conductors 120/20mm to DIN EN 50182)

    Charging time: 40 min. (20 min. with quick charger)

    Ambient temperature: -20 C up to +40 C




    RAC Kettering Distributors of
    Greenlee and Klauke Tools

    UNIT 2 TORRIDGE CLOSE,
    TELFORD WAY INDUSTRIAL ESTATE,
    KETTERING, NORTHANTS, NN16 8PY.
    Tel: 01536 484733
    01536 525136

    Fax: 01536 481569

    About Us - Contact Us - Site Map - Homepage
