    Cable pulling technology


    GREENLEE CABLE PULLING & GREENLEE CABLE FISHING

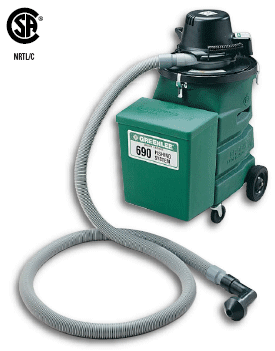

    Greenlee 690 Vacuum/Blower Power Fishing System

    • Rugged self-contained unit includes everything necessary to blow or vacuum fish line, poly line, or measuring tape

    • Durable tank and accessory storage box are corrosion, chemical and impact-resistant polyethylene

    • Designed for the jobsite, 10' long hose, large heavy-duty wheels and removable accessory box

    • Large 11 gallon tank makes the 690 excellent for vacuuming water and debris




    Greenlee 690 Vacuum/Blower Power Fishing System

    No. Description
    Weight
    GL-690 Vacuum/Blower Power Fishing System 120VAC 51.00
    GL-618 Piston for 5" Conduit, IMC & Rigid 0.30
    GL-619 Piston for 6" Conduit EMT 0.50
    GL-16646 Accessory Adapter for 5" - 6" Conduit 0.10


    Greenlee Tugger® Cable Puller 4,000 Lbs. Rated
    •  An economical puller with enough power for most jobs
    • Lighter weight for easier mount in tough applications
    • Leaf-type mounting chains won't twist when tightening
    • Unique floor mounting attachment for quick reliable setup
    • Right angle sheave allows the operator to stand out of the direct line of force
    • Audio alarm high force warning and circuit breaker shut off at maximum force for equipment protection and added safety
    • Tapered capstan and patented rope guidance system for better control of rope
    • Patented


    Greenlee Tugger® Cable Puller 4,000 Lbs. Rated


    No.

    Description


    Weight
    GL-640 Tugger Cable Puller Unit, Includes Vise Chains 115VAC. 88.00
    GL-640-22 Tugger Cable Puller Unit, Includes Vise Chains 220VAC. 88.00
    GL-642 Tugger Puller Package, Includes GL-640 Pipe Adapter Sheave, Floor Mount, 9/16" x 300' Double-Braided Polyester Rope, Rope Reel Stand & Steel Storage Box 115VAC

    422.00
    GL-676 Tugger Puller Package Without Rope, Includes GL-640, Pipe Adapter Sheave, Flexible Pipe Adapter, Mobile Extension Boom, 2', 2-1/2", 3", 3-1/2" & 4" Extension Bushings, Floor Mount and Steel Storage Box With Casters 115VAC

    451.00
    GL-686 Tugger Puller Package Complete, Includes GL-640, Pipe Adapter Sheave, 12" Hook Sheave, Flexible Pipe Adapter, Mobile Extension Boom, 2', 2-1/2", 3", 3-1/2" & 4" Extension Bushings, 9/16" x 300' Double-Braided Polyester Rope, Rope Reel Stand, Floor Mount and Steel Storage Box With Casters 115VAC

    536.00
    GL-686-22 Tugger Puller Package Complete, Includes GL-640, Pipe Adapter Sheave, 12" Hook Sheave, Flexible Pipe Adapter, Mobile Extension Boom, 2', 2-1/2", 3", 3-1/2" & 4" Extension Bushings, 9/16" x 300' Double-Braided Polyester Rope, Rope Reel Stand, Floor Mount and Steel Storage Box With Casters 220VAC

    522.00
    GL-37171 Force Gauge for GL-640 4.00
    GL-35766 Force Gauge for GL-640-22 4.00
    GL-35283 9/16" x 300' Double-Braided Composite Rope 42.20
    GL-35284 9/16" x 600' Double-Braided Composite Rope 82.00
    GL-35285 9/16" x 1,200' Double-Braided Composite Rope 144.00
    GL-445 Foot Switch 9.40

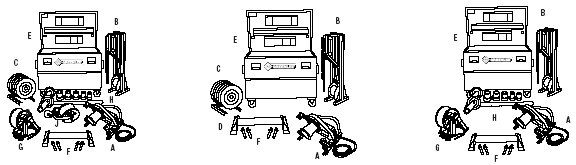

    GL-686 Tugger® Puller System          GL-642 Tugger® Puller System             GL-676 Tugger® Puller System


    Greenlee tools
    has introduced a new line of Ultra Tugger 5 cable puller packages that are designed to complete pulls 50 percent faster. They feature a pulling capacity of 5,000 pounds, pulling a 500-foot run in one hour or less. Greenlee Tools now also offers two Greenlee Ultra Tugger power units with 5,000 and 8,000 pounds pulling capacity.

    For over 70 years, Illinois-based Greenlee has produced some of the finest products for the electrical industry. Their ISO 9001 certification gives professionals full assurance that they're using the very best tools for the job. At CSC Industrial, we feature the entire Greenlee line for electrical professionals, including the powerful Greenlee line of cable pullers.

    The Greenlee Tugger 4 Cable Puller 4,000 Lbs. Rated offers you an economical option for pulling, but it still features enough power for most jobs. Its relatively light weight makes it easier to mount in tough applications. The Tugger?4 has a unique floor-mounting attachment for fast, reliable set-up, and the leaf-type mounting chains will not twist when you're tightening.

    Next up is the Greenlee Ultra Tugger 5 Cable Puller 5,000 Lbs. Rated. That's 5,000 pounds of pulling force for a pull speed range of nine to 14 FPM, allowing you to complete most 500-foot pulls in an hour or less. The Tugger 5's wheeled carriage and boom give you fast set-up with no anchors to set or chains to mount.

    For your bigger jobs, Greenlee offers the Ultra Tugger 8 Cable Puller, rated for 8,000 pounds. Its Versi-Boom System lets you do fast, versatile set-ups to pull 10 or 20 feet of extra cable with ease. The Tugger 8 is lightweight, portable, and features an optional deluxe force gauge. You'll find these powerful pullers and much more on our easy-to-navigate CSC Industrial site. Order online, or simply fax or phone in your order today. We'll get you the Greenlee technology you need fast, and for less


    GREENLEE CABLE PULLING

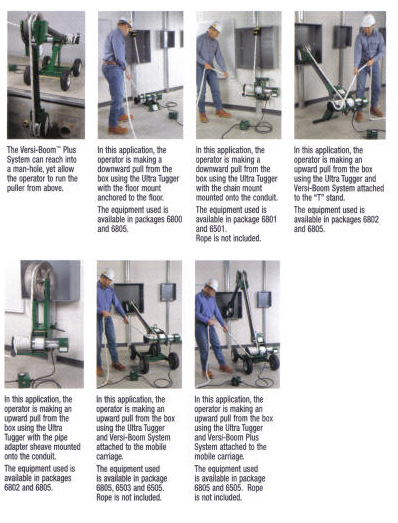

     The Greenlee Ultra Tugger 5 power units are interchangeable with the Greenlee 6801 and 6805 Ultra Tugger pullers. Ultra Tugger® 5 cable puller packages that are designed to complete pulls 50 percent faster. They feature a pulling capacity of 5,000 pounds.


    Greenlee Ultra Tugger® 8 Cable Puller 8,000 Lbs. Rated (35.8kn)
    • 8000 lbs. maximum pulling power (35.8kn)
    • Versi-Boom System allows you to make versatile and fast setups and pull 10' or 20' of extra cable easily.
    • Uses Standard 3" Rigid steel conduit for boom
    • Direct gear drive
    • Lightweight
    • Portable
    • Optional Deluxe force gauge
    • Patented


    Greenlee Ultra Tugger 8482; Cable Puller

    No. Description
    Weight
    GL-6800 Ultra Tugger 8 Cable Puller w/standard force gauge & floor mount 115VAC 132.00
    GL-6800-22 Ultra Tugger 8 Cable Puller w/standard force gauge & floor mount 220VAC 132.00
    GL-6801 Ultra Tugger 8 Cable Puller w/standard force gauge & conduit chain mount 133.00
    GL-6802 Ultra Tugger 8 Cable Puller w/standard force gauge, pipe adapter sheave, floor mount Versi-Boom System & "T" stand 115VAC 568.00
    GL-6802-22 Ultra Tugger 8 Cable Puller w/standard force gauge, pipe adapter sheave, floor mount Versi-Boom System & "T" stand 220VAC 572.00

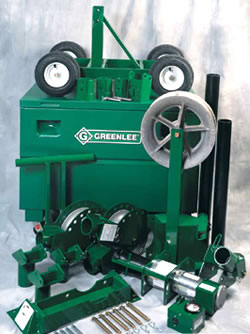

    GL-6805 Same as the GL-6802 plus the Versi-Boom Plus Extension & Elbow, wheeled carriage and 3", 3-1/2" & 4" Screw-on couplers without rope 115VAC 765.00
    GL-6805-22 Same as the GL-6802 plus the Versi-Boom Plus Extension & Elbow, wheeled carriage and 3", 3-1/2" & 4" Screw-on couplers without rope 220VAC 767.00



    Greenlee Ultra Tugger® 5 Cable Puller 5,000 Lbs. Rated
    • 5,000 Lbs.(22.3kn) Pulling Force, enough power to pull most 500 kcmil (MCM) jobs of 500 feet or less
    • Pull speed range of 9 to 14 FPM will complete most 500 ft. pulls in 1 hour or less
    • Wheeled carriage and boom provides fast setup with no anchors to set or chains to mount
    • Boom uses 3" Rigid steel conduit for easy length adjustment to pull 10 to 20 feet of cable out of the box fast and easy.



         For over 70 years, Illinois-based Greenlee has produced some of the finest products for the electrical industry. Their ISO 9001 certification gives professionals full assurance that they're using the very best tools for the job. At CSC Industrial, we feature the entire Greenlee line for electrical professionals, including the powerful Greenlee line of cable pullers.

    The Greenlee Tugger 4 Cable Puller 4,000 Lbs. Rated offers you an economical option for pulling, but it still features enough power for most jobs. Its relatively light weight makes it easier to mount in tough applications. The Tugger 4 has a unique floor-mounting attachment for fast, reliable set-up, and the leaf-type mounting chains will not twist when you're tightening.

    Next up is the Greenlee Ultra Tugger 5 Cable Puller 5,000 Lbs. Rated. That's 5,000 pounds of pulling force for a pull speed range of nine to 14 FPM, allowing you to complete most 500-foot pulls in an hour or less. The Tugger 5's wheeled carriage and boom give you fast set-up with no anchors to set or chains to mount.

    For your bigger jobs, Greenlee offers the Ultra Tugger 8 Cable Puller, rated for 8,000 pounds. Its Versi-Boom System lets you do fast, versatile set-ups to pull 10 or 20 feet of extra cable with ease.

    The Tugger 8 is lightweight, portable, and features an optional deluxe force gauge. You'll find these powerful pullers and much more on our easy-to-navigate CSC Industrial site. Order online, or simply fax or phone in your order today. We'll get you the Greenlee technology you need fast, and for less.


    No. Description
    Weight
    GL-15000 Ultra Tugger 5 Cable Puller Unit only with standard force gauge 104.00
    GL-6501 Ultra Tugger 5 Cable Puller Unit with standard force gauge, chain mount & vise chains 140.00
    GL-6503 Ultra Tugger 5 Cable Puller Basic Package with standard force gauge, wheeled carriage, 4' boom, boom mount and nose unit, 2-1/2", 3" & 4" slip-in couplings, 2-1/2", 3" & 4" screw-on couplings, rope & storage box are optional.

    388.00
    GL-6505 Ultra Tugger 5 Cable Puller Deluxe Package with standard force gauge, wheeled carriage, 4' boom, boom mount and nose unit, 2-1/2", 3" & 4" slip-in couplings, 2-1/2", 3" & 4" screw-on couplings, 3' boom, elbow unit & floor mount, rope & storage box are optional.

    485.00
    GL-0862 Pipe Adapter Sheave 96.00
    GL-00865 Floor Mount 32.00
    GL-00967 Deluxe Force Gauge 45.40
    GL-3048 Storage Box 200.00
    GL-35098 Pull Rope 3/4" x 300' Double-Braided Composite 73.00
    GL-35100 Pull Rope 3/4" x 600' Double-Braided Composite 116.00
    GL-00781 Screw-on Coupling, 2-1/2" 3.10
    GL-00783 Screw-on Coupling, 3-1/2" 5.60





    Greenlee 766 Hand Crank Wire Puller
    • Pulls 1500 pounds
    • Two speed ratchet allows maximum pull with only 30 lbs. of handle force
    • Easily operated by one person
    • Completely self-contained and ready to operate
    • Equipped with 200' of 1/8" steel aircraft cable
    No. Description
    Weight
    GL-766 Greenlee 766 Hand Crank Wire Puller 38.00
    GL-50954 200' spool of steel aircraft cable 6.20
    GL-13955 Shear pin (10 Pc) 9.00
    GL-28280 Crank Handle Assembly 1.60



    Greenlee Hook-Type Sheaves for Easy Tugger & Tugger
    • Strong welded steel frames
    • Forged steel closure-type hooks with 1" opening
    • 5" wide aluminum alloy sheaves with self-lubricating bearings
    • Select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    No. Description
    lbs.
    GL-650 6" Ø Hook Sheave with 1-1/2" Minimum Radius 10.00

    GL-651 12" Ø Hook Sheave with 3-5/16" Minimum Radius 16.00

    GL-652 18' Ø Hook Sheave with 7" Minimum Radius 35.00

    GL-653 24" Ø Hook Sheave with 9-13/16" Minimum Radius 33.00








    Rope Reels & Stand
    Description Capacity Reel
    Diameter
    Reel
    Width

    lbs.
    No.
     Rope reel stand  1/4" X 600'  10"  6" 5.50  GL-405
     Rope reel stand  1/2" X 300'  13"  9" 7.80  GL-406
     Rope reel stand 3/4" X 300' 17" 16" 13.20 GL-644
     Rope reel stand 7/8" X 600' 24" 19" 32.10 GL-654






    Greenlee High Strength Double Braided Composite Rope
    For High Force Cable Pullers

    • Double braided inner core with double braided outer jacket for extra strength and less stretch
    • Rot and mildew resistant
    • Factory spliced eye on both ends
    • Packed on sturdy reel
    • Other sizes and lengths of rope are available. Call for details.
    • Select a rope with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force



    Diameter Length Max. Strength
    lbs.
    No.
     9/16"  300'  16,000 lbs. 45.00 GL-35283
     9/16"  600'  16,000 lbs. 63.00  GL-35284
    9/16" 1,200' 16,000 lbs. 130.00 GL-35285

    3/4"  300'  26,000 lbs. 58.00 GL-35098

    3/4"  600'  26,000 lbs. 113.00 GL-35100
    3/4" 1,200' 26,000 lbs. 230.00 GL-35101

    7/8"  300'  32,000 lbs. 90.00 GL-34136

    7/8"  600'  32,000 lbs. 178.00 GL-34137

    7/8" 1,200' 32000 lbs. 359.00 GL-34138








    Greenlee Multiplex Cable Pulling Rope for Low Force Cable Pullers

    • Strong, white polyester braided rope with green tracer
    • Rot and mildew resistant
    • Packed on sturdy reel
    • Factory spliced eyes at both ends
    • Low stretch
    • Select a rope with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force



    Diameter Length Strength
    lbs.
    No.
     3/8"  100'  3,700 lbs. 5.60  GL-34121

     3/8"  300'  3,700 lbs. 14.30  GL-34122

    3/8' 600' 3,700 lbs. 31.00 GL-34123

    3/8" 1,200' 3,700 lbs. 60.00 GL-34124

    1/2"  300' 6,400 lbs. 23.80 GL-480

    1/2" 600' 6,400 lbs. 50.00 GL-481

    1/2" 1,200' 6,400 lbs. 104.00 GL-482

    5/8"  300' 10,000 lbs. 34.00 GL-483

    5/8" 600' 10,000 lbs. 75.00 GL-484

    5/8" 1,200' 10,000 lbs. 142.00 GL-485

    3/4"  300' 12,500 lbs. 58.00 GL-6005

    3/4" 600' 12,500 lbs. 113.00 GL-6015

    3/4" 1,200' 12,500 lbs. 230.00 GL-6025



    GREENLEE CABLE PULLING SHEAVES


    Greenlee Hook Sheaves
    Greenlee sheaves meet almost every job need. Handle and pull cable faster and more efficiently. Sheaves provide positive control, even on long, difficult pulls. Greenlee sheaves minimize the chances of scuffing, kinking, or cutting sheathing and insulation. Greenlee cable handling systems pay for themselves.

    Greenlee Hook Type Sheaves
    • Keep cable bunched together
    • 1" hook opening
    • Self lubricating bearings
    • Welded steel frames and aluminum alloy sheaves
    • 8,000 lbs. pulling force
    Description Trade Size
    lbs.
    No.
     Hook Sheave  12"  28.00  GL-8012

     Hook Sheave  18"  45.00  GL-8018

     Hook Sheave  24"  70.00  GL-8024






    Greenlee Triangle Sheaves, Cable Guide
    Advantages over conventional hook type sheaves
    • Adjustable center sheave for 19-1/2" or 36" radius
    • Forged steel closure type hook with 1-1/2" opening
    • Aluminum frames for light weight
    • Use with any cable puller whose maximum pulling force is rated 6,500 lbs. or less
    Description
    lbs.
    No.
    Greenlee Triple Sheave Cable Guide  28.00  GL-6036




    Greenlee Right Angle Twin Yoke Sheave
    • Welded steel yokes
    • 5" wide aluminum alloy sheave
    • Forged steel closure type hook with 1-1/2" opening
    • Yokes rotate independently to fit various setups
    • 4000 lbs. pulling force
    Description
    lbs.
    No.
    Greenlee Right Angle Twin Yoke Sheave  45.00  GL-639

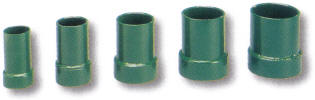

    Greenlee Extension Bushings for 640 Tugger & 6001 Super Tugger
    • Use to extend the end of the bushing by threading onto it, this will allow you to securely attach the Flexible Adapter
    • Helps eliminate strain on hangers and boxes
    Description
    lbs.
    No.
    2' Extension Bushing 2.00 GL-16782

    2-1/2" Extension Bushing 2.70 GL-16783

    3" Extension Bushing 4.30 GL-16784

    3-1/2" Extension Bushing 5.70 GL-16785

    4" Extension Bushing 6.10

    GL-16786






    GREENLEE CABLE PULLING SHEAVES


    Greenlee Radius Sheaves
    • Welded steel frame with a series of sheaves to form a large radius
    • 5" aluminum alloy sheaves
    • Yokes with cast steel closure-type hooks with a 1" opening
    • Use with any cable puller whose maximum pulling force is 4,000 lbs. or less
    Radius Sheaves
    lbs.
    No.
    16" 4 49.00 GL-636

    24" 6 63.00 GL-637

    36" 8 85.00 GL-638

    48" 10 115.00 GL-631





    Greenlee Cable Feeding Sheaves
    • Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave
    • 5" wide aluminum alloy sheave with self-lubricating bearings
    • Split tube for easy removal after cable is installed
    Conduit
    Size

    lbs.
    No.
     2"  9.30 GL-441-2

     2 1/2" 11.00 GL-441-2-1/2

     3"  14.00 GL-441-3

     3 1/2"  18.20 GL-441-3-1/2

     4"  19.00 GL-441-4

     5"  26.00 GL-441-5"





    Greenlee Nylon Cable Protectors
    • Position where cables are being pulled over sharp edges

    Description
    lbs.
    No.
    Nylon Cable Protector for 2" and 2-1/2" Conduit 10 Pc. 11.00 GL-488-2

    Nylon Cable Protector for 3" to 6" Conduit 10 Pc. 19.00 GL-488-3





    Greenlee Cable Guide
    • Fits in the end of conduit to shield the cable from sharp edges as it is being fed trough
    • Rugged nylon resists abrasion


    Description
    lbs.
    No.
    Nylon Cable Guide 5 Pc. 14.50 GL-489





    Greenlee Manhole Sheaves
    • Increased speed in manhole and underground pulls
    • Rugged aluminum alloy frame for easy setup
    • Two hook type yokes to facilitate tying back
    • 18"  Ø aluminum alloy sheaves with 7" minimum radius & 5" width
    • Up to 6,500 lbs. pulling force

    Length
    lbs.
    No.
     10' 104.00  GL-671

     12' 190.00  GL-6072






    Greenlee Straight Cable Rollers
    • Straight, radius, right angle rollers can be used individually or in combination
    • Nylon rollers
    • Tray adjustment allows rollers to be used with different trays and ladders
    • No sharp edges to catch cable
    • Top or Bottom mounting
    • Drops out of ladder when installation complete
    Width
    lbs.
    No.
     12" to 18" 7.80  GL-2018S

     20" to 24" 9.50 GL-2024S

     24" to 30" 12.20 GL-2030S

     30" to 36" 15.20 GL-2036S






    Greenlee Radius Cable Rollers
    Width
    lbs.
    No.
     12" to 18" 10.80  GL-2018R

     20" to 24" 11.80 GL-2024R

     24" to 30" 12.80 GL-2030R

     30" to 36" 13.50 GL-2036R






    Greenlee Right Angle Cable Rollers
    Width / Radius
    lbs.
    No.
     24" / 90° 41.00  GL-20249R

     36" / 90°  53.00 GL-20369R


    Greenlee Rope Clevis
    • Fast and easy to connect pulling rope to wire grip
    • Removable bolt and rope sheave
    • Passes through offsets and 90° bends easily
    • Use swivel rope clevis with heavy loads
    • Removable grip eye bolt
    • Removable sheave for rope eye
    Description Pull Rating
    lbs.
    No.
     Rope Clevis  6,500 lbs.  0.90  GL-578

     Rope Clevis  10,000 lbs.  1.30 GL-579

     Rope Clevis  6,500 lbs.  1.30 GL-678





    Greenlee Rope to Swivel Connector
    • Rope-to-Swivel Connectors connect the cable pulling rope, up to 1" in diameter, to the pulling swivel
    • Makes connecting the pulling rope and the pulling swivel easier
    • Connectors feature a removable sheave for rope eye
    • Select the connector with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    Diameter Length "E" "F" No.
    2" 4-11/16" 7/16" 13/32" GL-39905

    2" 4-11/16" 1/2" 1/2" GL-39904

    2" 4-11/16" 9/16" 5/8" GL-39903

    2" 4-11/16" 11/16" 11/16" GL-39902

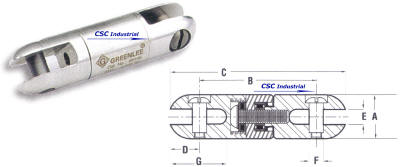

    Greenlee Swivels
    • Helps eliminate winding and tangling of rope and cable during pull
    • Connects grip and pulling rope
    • All stainless steel body construction
    • Efficient thrust and roller bearing construction allows smooth rotation even under full load
    • Clevis pins are "shoulder Bolt" style, so load on both sides of clevis is taken on the shoulder, not the thread
    • Select a swivel with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    Max Rated
    Capacity
    Diameter
    A
    C E Diameter
     F

    lbs.
    2,250 lbs 7/8" 3-1/2" 3/8" 5/16" 0.40

    GL-39106
    5,000 lbs 1-1/4" 4-1/8" 1/2" 13/32" 1.00

    GL-39107
    7,000 lbs 1-3/8" 4-17/32" 9/16" 1/2" 1.40

    GL-39108
    10,000 lbs 1-5/8" 5-7/16" 5/8" 5/8" 2.10

    GL-39109
    15,000 lbs 2" 6-9/16" 3/4" 11/16" 4.00

    GL-39110
    25,000 lbs 2-3/8" 8-7/16" 1" 7/8" 8.60

    GL-39111

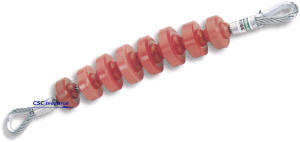

    Greenlee Flexible Mandrel
    • Use before cable install as a GO-NO-GO gauge
    • Useful for cleaning mud, dirt and light obstacles from ducts before installation of cable
    • Can be used around tight bends due to convex contacts between disks
    • Tapered profile allows pulling in either direction, pulling eyes on both ends
    • Polyurethane disks do not damage inner walls of conduit
    Conduit Size Max. Disk Size No.
     2"  1.88 GL-39265

     2.5"  2.19 GL-39263

     3"  2.81 GL-39261

     3.5"  3.25 GL-39259
     4"  3.75 GL-39257
     5"  4.69 GL-39255
     6"  5.81 GL-39288

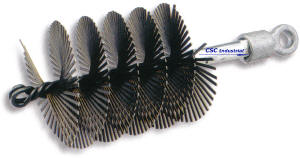

    Greenlee Conduit Brushes
    • Flat steel bristles remove sand and other light hidden obstructions
    • Pulling eye on one end and twisted eye on the other end for tailing line allows bi-directional use
    • Can be pulled to loosen dried material before using mandrels or spreader swabs
    • Maximum rated capacity 200 lbs
    Description For Conduit Size No.
    Greenlee Conduit brush with pulling eye  2" GL-39274
    Greenlee  Conduit brush with pulling eye  2 1/2" GL-39276
    Greenlee  Conduit brush with pulling eye  3" GL-39278
    Greenlee  Conduit brush with pulling eye  3 1/2" GL-39280
    Greenlee  Conduit brush with pulling eye  4" GL-39282
    Greenlee  Conduit brush with pulling eye  5" GL-39284
    Greenlee  Conduit brush with pulling eye  6" GL-39286

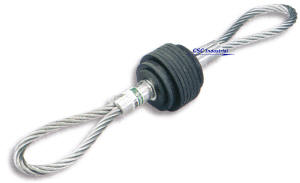

    Greenlee Lube Spreaders
    • Clean conduit as you pull in cable
    • Spreads a coat of wire lubricant in duct before installation of cable
    • tapered shape permits bi-directional use
    • Will not damage inner walls of duct
    For Conduit Size No.
     2" GL-16854
     2 1/2" GL-16856
     3" GL-16857
     3 1/2" GL-16858
     4" GL-16859
     5" GL-17370
     6" GL-17571



    Greenlee Set Screw Clamp Pulling Grips

    Greenlee Set Screw Clamp Pulling Grips
    • Use to pull in 2" or larger conduit
    • Type of pulls: Heavy, long runs
    • Type of grip: Flexible eye 1/4"Ø galvanized steel aircraft cable connected to 2 cable receptacles with 5/8"Ø opening and 2 clamping set screws
    • Select pulling grips with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    • Minimum cable Ø is 3/8"

    Description Max. Rated Capacity No.
     Pulling grip with clevis includes: 624S, 624L and 678 clevis  6,500 lbs GL-629

     Pulling grip includes: 624S and 624L 2 Clamp each  6,500 lbs GL-624

     Short pulling grip 2 Clamp  3,250 lbs GL-624S

     Long pulling grip 2 Clamp  3,250 lbs GL-624L

     Grip Allen Wrench  N/A GL-51208

     Grip Set Screw Pack of 3  N/A GL-52352






    Greenlee Set Screw Clamp-Type Pulling Grip

    Greenlee Set Screw Clamp-Type Pulling Grip
    • Use to pull in 2" or larger conduit
    • Type of pulls: Light & Medium runs
    • Type of grip: Flexible eye 1/4"Ø galvanized steel aircraft cable connected to 2 cable receptacles with 5/8"Ø opening and 2 clamping set screws
    • Select pulling grips with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    Description Max. Rated Capacity No.
    Greenlee Set Screw Clamp-Type Pulling Grip 1,750 lbs GL-504

     Grip Set Screw Pack of 3  N/A GL-52352

     Grip Allen Wrench  N/A GL-51208




    Greenlee Basket-Type Pulling Grips Sets

    Greenlee Basket-Type Pulling Grips Sets
    • Handy set gives you the size range you need
    • Have the correct grip on the job and save time
    • Use to pull in Basket or Tray
    • Double weave galvanized steel mesh with flexible pulling eye
    • Select pulling grips with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    No Description
    GL-30758 Building Wire Junior Grip Set Diameter Range 1/4" - 1-1/4" Consists of 30588, 30590, 30592, 30594, 30584 & 30586

    GL-597 T-Type Grip Diameter Range 3/4" - 2" Consists of 30576, 30578 & 31010

    GL-598 T-Type Grip Set Diameter Range 1-1/2" - 3" Consists of 31010 30580 & 31012

    GL-599 T-Type Grip Diameter Range 3/4" - 3" Consists of 30576, 30578, 31010, 30580 & 31012





    width=600-Type Pulling Grips Greenlee Light Duty Basket-Type Pulling Grips
    • Use to pull in Basket or Tray
    • Type of Pull: Light Duty, Short Easy Runs
    • Single weave galvanized steel mesh with flexible pulling eye
    • Select pulling grips with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    No Description Ø " Max. Cap. Eye Length " Mesh Length "

    GL-30536 Basket Type Pulling Grip .50 - .61 560 lbs 5.00 16.00
    GL-30538 Basket Type Pulling Grip .62 - .74 560 lbs 5.00 16.00
    GL-30540 Basket Type Pulling Grip .75 - .99 800 lbs 6.00
    GL-30542 Basket Type Pulling Grip 1.00 - 1.24 1,360 lbs 7.00 20.00
    GL-30544 Basket Type Pulling Grip 1.25 - 1.49 1,360 lbs 7.00
    GL-30546 Basket Type Pulling Grip 1.50 - 1.99 1,360 lbs 8.00 23.00
    GL-30548 Basket Type Pulling Grip 2.00 - 2.49 1,700 lbs 9.00 25.00
    GL-30550 Basket Type Pulling Grip 2.50 - 2.99 2,120 lbs 9.00 27.00
    GL-30552 Basket Type Pulling Grip 3.00 - 3.49 2,940 lbs 10.00 30.00
    GL-30554 Basket Type Pulling Grip 3.50 - 3.99 2,940 lbs 10.00 32.00


    Greenlee T-Basket Type Pulling Grips

    Greenlee T-Basket Type Pulling Grips
    • Use to pull in 2" conduit or tray
    • Type of pulls: Medium Duty
    • Double weave galvanized steel mesh with flexible pulling eye
    • Select pulling grips with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    No Description Ø " Max. Cap. Eye Length " Mesh Length "
    GL-30558 T-Basket Type Pulling Grip .50 - .61 900 lbs 8.00 21.00

    GL-30560 T-Basket Type Pulling Grip .62 - .74 1,120 lbs 8.00 24.00

    GL-30562 T-Basket Type Pulling Grip .75 - .99 1,360 lbs 9.00 24.00

    GL-30564 T-Basket Type Pulling Grip 1.00 - 1.49 1,920 lbs 9.00 24.00

    GL-30566 T-Basket Type Pulling Grip 1.50 - 1.99 3,280 lbs 11.00 24.00

    GL-30568 T-Basket Type Pulling Grip 2.00 - 2.49 3,700 lbs 12.00 24.00

    GL-30570 T-Basket Type Pulling Grip 2.50 - 2.99 4,900 lbs 12.00 24.00

    GL-30572 T-Basket Type Pulling Grip 3.00 - 3.49 4,900 lbs 14.00 24.00

    GL-30574 T-Basket Type Pulling Grip 3.50 - 3.99 6,200 lbs 14.00 26.00

    GL-30576 T-Basket Type Pulling Grip .75 - .99 1,360 lbs 9.00 36.00

    GL-30578 T-Basket Type Pulling Grip 1.00 - 1.49 1,920 lbs 9.00 36.00

    GL-31010 T-Basket Type Pulling Grip 1.50 - 1.99 3,280 lbs 11.00 36.00

    GL-30580 T-Basket Type Pulling Grip 2.00 - 2.49 3,700 lbs 12.00 36.00

    GL-31012 T-Basket Type Pulling Grip 2.50 - 2.99 4,900 lbs 12.00 36.00

    GL-30582 T-Basket Type Pulling Grip 3.00 - 3.49 4,900 lbs 14.00 36.00

    GL-31014 T-Basket Type Pulling Grip 3.50 - 3.99 6,200 lbs 14.00 40.00







    Greenlee K-Basket Type Pulling Grips Greenlee K-Basket Type Pulling Grips
    • Use to pull in 2" conduit or tray
    • Type of pulls: Heavy-Duty, Long Hard Runs
    • Double weave galvanized steel mesh with flexible pulling eye
    • Select pulling grips with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    No Description Ø " Max. Cap. Eye Length " Mesh Length "
    GL-30442 K-Basket Type Pulling Grip .50 - .61 1,120 lbs 5.00 16.00

    GL-30998 K-Basket Type Pulling Grip .62 - .74 1,360 lbs 5.00 16.00

    GL-30460 K-Basket Type Pulling Grip .75 - .99 1,920 lbs 6.00 32.00

    GL-31000 K-Basket Type Pulling Grip 1.00 - 1.24 3,280 lbs 7.00 33.00

    GL-30462 K-Basket Type Pulling Grip 1.50 - 1.99 3,280 lbs 7.00 34.00

    GL-31002 K-Basket Type Pulling Grip 2.00 - 2.49 5,440 lbs 9.00 36.00

    GL-30464 K-Basket Type Pulling Grip 2.50 - 2.99 6,600 lbs 10.00 38.00

    GL-31004 K-Basket Type Pulling Grip 3.00 - 3.49 8,200 lbs 10.00 39.00

    GL-30466 K-Basket Type Pulling Grip 3.50 - 3.99 9,600 lbs 10.00 41.00

    GL-31006 K-Basket Type Pulling Grip 4.00 - 4.49 9,600 lbs 10.00 42.00

    GL-30468 K-Basket Type Pulling Grip 4.50 - 4.99 9,600 lbs 10.00 58.00

    GL-30470 K-Basket Type Pulling Grip 5.00 - 5.99 9,600 lbs 10.00 60.00







    Greenlee Multiple Strength Basket-Type Pulling Grips With Rotating Forged Eye Greenlee Multiple Strength Basket-Type Pulling Grips With Rotating Forged Eye
    • Handy set gives you the size range you need
    • Have the correct grip on the job and save time
    • Use to pull in Basket or Tray
    • Double weave galvanized steel mesh with flexible pulling eye
    • Select pulling grips with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    No Description Ø " Max. Cap. Eye Length " Mesh Length "
    GL-30474 Multiple Strength Basket-Type Pulling Grip .25 - .49 1,360 lbs 5.00 26.00

    GL-30476 Multiple Strength Basket-Type Pulling Grip .50 - .74 2,000 lbs 6.00 32.00

    GL-30478 Multiple Strength Basket-Type Pulling Grip .75 - .99 2,880 lbs 6.00 41.00

    GL-30480 Multiple Strength Basket-Type Pulling Grip 1.00 - 1.24 4,920 lbs 8.00 52.00

    GL-30482 Multiple Strength Basket-Type Pulling Grip 1.25 - 1.49 6,120 lbs 8.00 56.00

    GL-30484 Multiple Strength Basket-Type Pulling Grip 1.50 - 1.74 6,120 lbs 9.00 60.00

    GL-30486 Multiple Strength Basket-Type Pulling Grip 1.75 - 2.24 9,600 lbs 10.00 70.00

    GL-30502 Multiple Strength Basket-Type Pulling Grip 2.00 - 2.49 9,600 lbs 10.00 50.00

    GL-30504 Multiple Strength Basket-Type Pulling Grip 2.50 - 2.99 9,600 lbs 10.00 52.00

    GL-30506 Multiple Strength Basket-Type Pulling Grip 3.00 - 3.49 9,600 lbs 10.00 54.00

    GL-30508 Multiple Strength Basket-Type Pulling Grip 3.50 - 3.99 9,600 lbs 10.00 56.00




    Greenlee Split Mesh Rod Closing Basket-Type Pulling Grips Greenlee Split Mesh Rod Closing Basket-Type Pulling Grips
    • Use to pull when the end of the conductor is not available
    • Type of Pull: Light and Straight the rod will not flex around bends
    • Single weave galvanized steel mesh with flexible pulling eye
    • Select pulling grips with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
    No Description Ø " Max. Cap. Eye Length " Mesh Length "
    GL-30658 Closing Basket-Type Pulling Grip .50 - .61 300 lbs 7.00 6.00

    GL-31024 Closing Basket-Type Pulling Grip .62 - .74 360 lbs 7.00 18.00

    GL-30660 Closing Basket-Type Pulling Grip .75 - .99 440 lbs 7.00 10.00

    GL-31026 Closing Basket-Type Pulling Grip 1.00 - 1.24 680 lbs 8.00 12.00

    GL-30662 Closing Basket-Type Pulling Grip 1.25 - 1.49 900 lbs 8.00 14.00

    GL-31028 Closing Basket-Type Pulling Grip 1.50 - 1.74 1,160 lbs 9.00 15.00

    GL-30664 Closing Basket-Type Pulling Grip 1.75 - 1.99 1,520 lbs 10.00 16.00

    GL-31030 Closing Basket-Type Pulling Grip 2.00 - 2.49 1,800 lbs 10.00 19.00

    GL-30666 Closing Basket-Type Pulling Grip 2.50 - 2.99 2,200 lbs 10.00 20.00

    GL-31032 Closing Basket-Type Pulling Grip 3.00 - 3.49 2,400 lbs 12.00 21.00

    GL-30668 Closing Basket-Type Pulling Grip 3.50 - 3.99 2,400 lbs 12.00 24.00

    GREENLEE SPINDLES & REEL ROLLERS

    Greenlee Reel Jacks & Spindles
    • For a complete set-up two jacks and one spindle are required, note that they are sold separately
    • Height adjustable
    • Ratchet mechanism on GL-656 facilitates raising and lowering
    • Solid construction wide welded steel base for added stability
    • Roller bearings fit in the spindle groove to keep the spindle in place and turning freely
    • Tempered steel spindles with grooves to fit reel stand rollers
    Lift Height Mechanism Capacity
    lbs.
    No.
     13" to 28"  Screw  2,500 lbs.  28.00  GL-687

     22" to 54"  Screw  2,500 lbs.  50.00  GL-683

     28" to 46-5/8"  Ratchet  7,500 lbs.  94.00  GL-656





    Greenlee Spindles

    Ø Size Capacity
    lbs.
    No.
    2-3/8" 62" 5,000 lbs. 42.00 GL-647

    3-1/2" 100" 7,500 lbs. 124.00 GL-657

    2-3/8" 76" 5,000 lbs. 50.00 GL-684

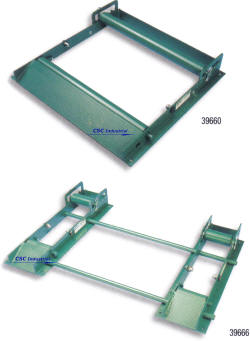

    Greenlee Reel Rollers
    • Heavy-duty welded steel construction
    • Built-in loading ramps
    • Adjustable to various reel widths and diameters
    • Roller locks for unloading
    • Side ball rollers for centering
    • Fast, convenient ground-level setup for paying out large cable reels
    Long Wide Capacity
    lbs.
    No.
     32" 34" 2,500 lbs 87.00 GL-39660

    32" 11" 2,000 lbs 45.00 GL-39666

    GREENLEE WIRE & CABLE HANDLING

    Greenlee Hand Truck / Wire Cart
    • Heavy-duty wheels for durability and easy transporting
    • 3 Spindles can be stored in frame
    • Dual heavy duty wire guides for dispensing multiple wires in all directions
    • Comes with five 5/8" Ø reel spindles dispense up to 15 spools of #14 THHN wire
    • Expander kit (shown on left) available to increase capacity by 60%
    No. Size
    lbs.
    GL-38733 46"H x 23"W x 22.5"D 58.00

    GL-10462 41"H x 12-5/8"W 15.70




    Greenlee 6 Reel Wire Caddy

    • All steel welded frame with 6 reel spindles and feeding eye
    • Angled spindles keep reels in place without locks and help brake the reel while paying out
    • Mobile, 2 fixed wheels and one that swivels and locks, allows easy movement and control
    • Fits through 30" doorways
    No. GL-909
    WEIGHT: 93 lbs.

    Greenlee 10 Reel Wire Cart / Dispenser
    • All welded steel construction
    • Base has 2 fixed and 2 swivel locking heavy-duty casters
    • Spindles are angled to contain reels and act as a brake while paying out wire
    • Guide head gathers wires and has number coded grommets to prevent scuffing and kinking
    • Fits through 36" doorways
    • Rack can make 360° turn independent of base
    No. GL-910
    WEIGHT: 213 lbs.



    Greenlee Cable Reel Transporter
    • All steel welded frame with heavy-duty wheels
    • Unique design provides easy setup for cable payout
    • Handle folds to save space when using as a dispenser
    No. GL-916
    WEIGHT: 110 lbs.
    DIMENSIONS: 56"L x 34"W x 66"H




    Greenlee Armored Cable Dispenser / Transporter


    • Dispense one coil of armored cable, flexible conduit, Greenfield® or NM-B cable fast and easy without twists or tangles
    • Base with adjustable tension control rotates to dispense the cable without overpulling
    • Large pulling eye rotates freely
    • Transport up to three coils

    Description No.
     Armored Cable Dispenser GL-37202



    RAC Kettering Distributors of
    Greenlee and Klauke Tools

    UNIT 2 TORRIDGE CLOSE,
    TELFORD WAY INDUSTRIAL ESTATE,
    KETTERING, NORTHANTS, NN16 8PY.
    Tel: 01536 484733
    01536 525136

    Fax: 01536 481569

    About Us - Contact Us - Site Map - Homepage
